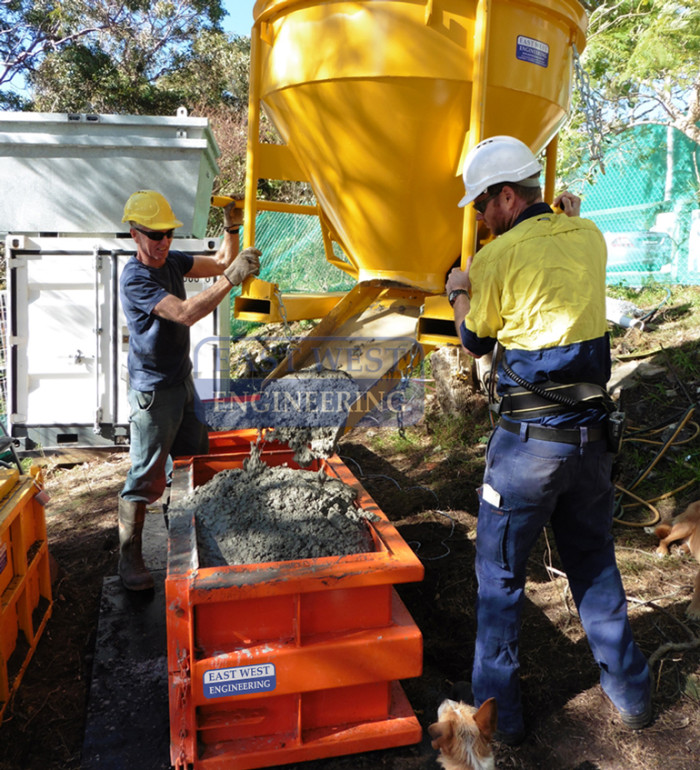

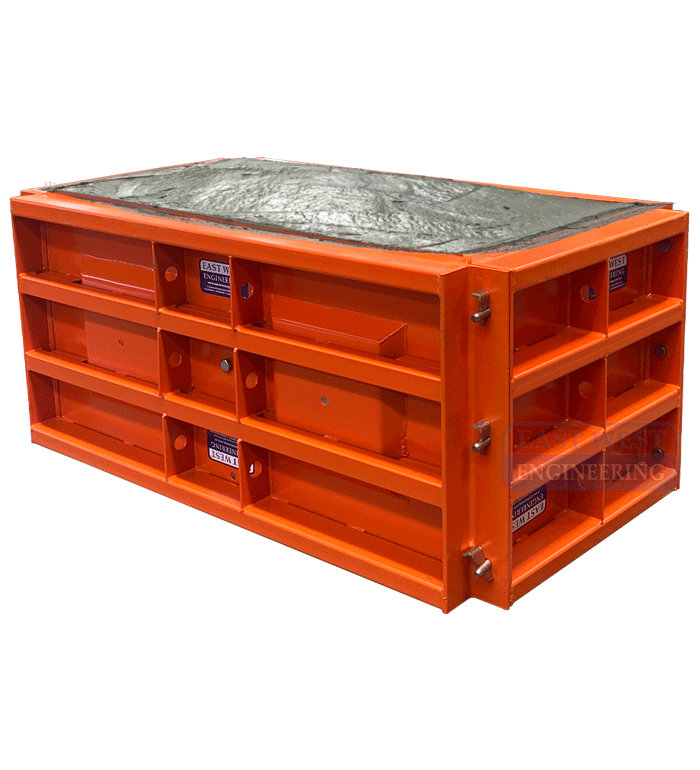

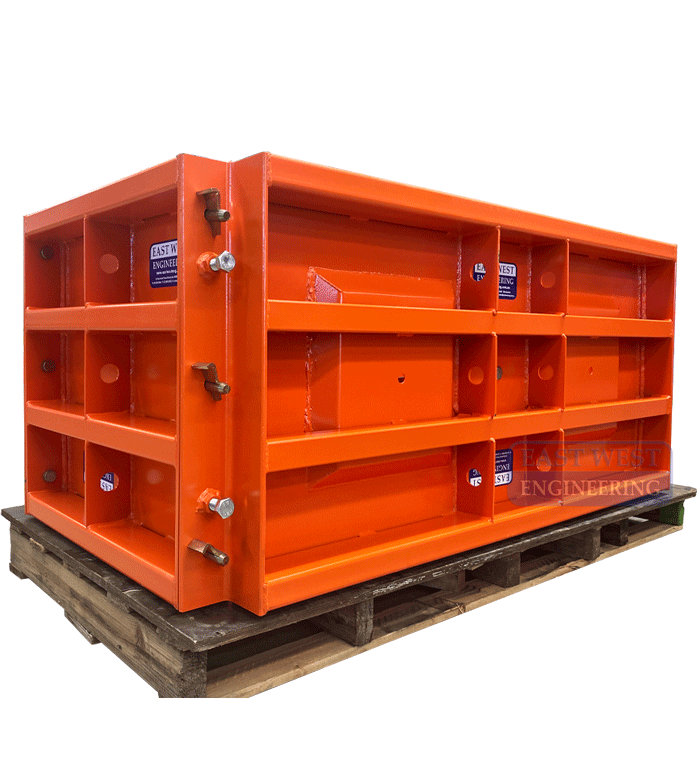

The CWM215-75 Concrete Mould is designed to allow surplus concrete to be processed into concrete blocks, reducing the expense and waste of materials when disposing of leftover concrete at the end of day’s pour. Its simple construction and portable design make it the perfect solution for recycling leftover concrete on-site.

FEATURES:

  • Finished block 1.5 x 0.75 x 0.75m
  • Simple construction is fast to assemble
  • Lightweight & stackable design is easy to transfer between sites

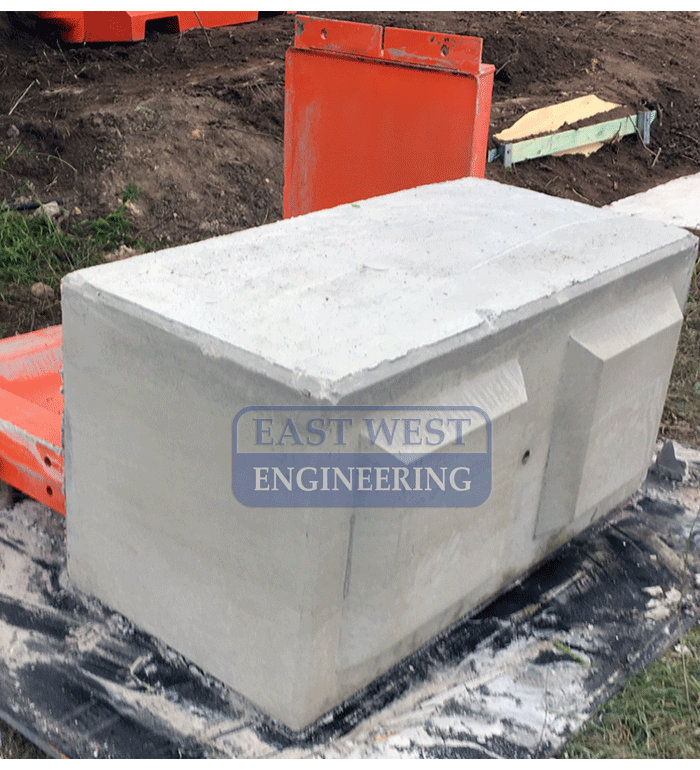

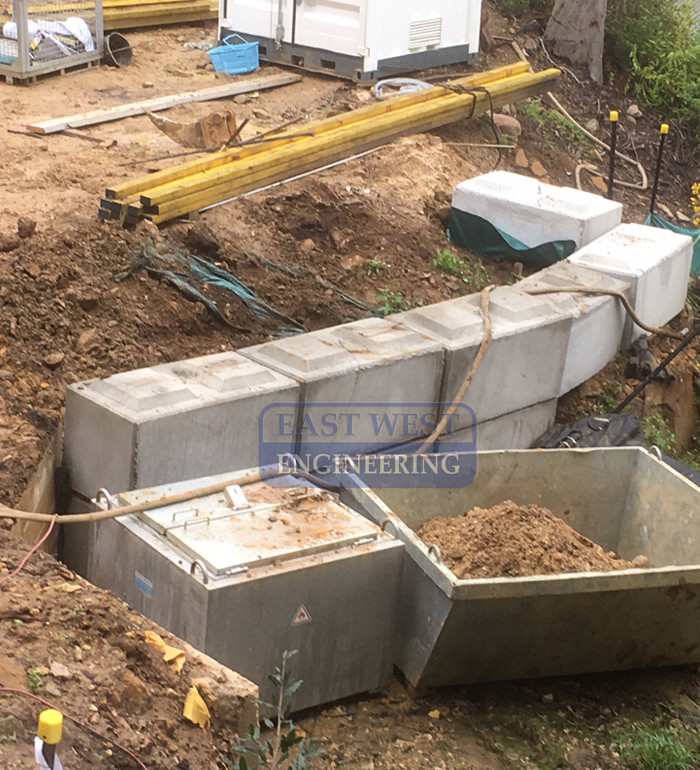

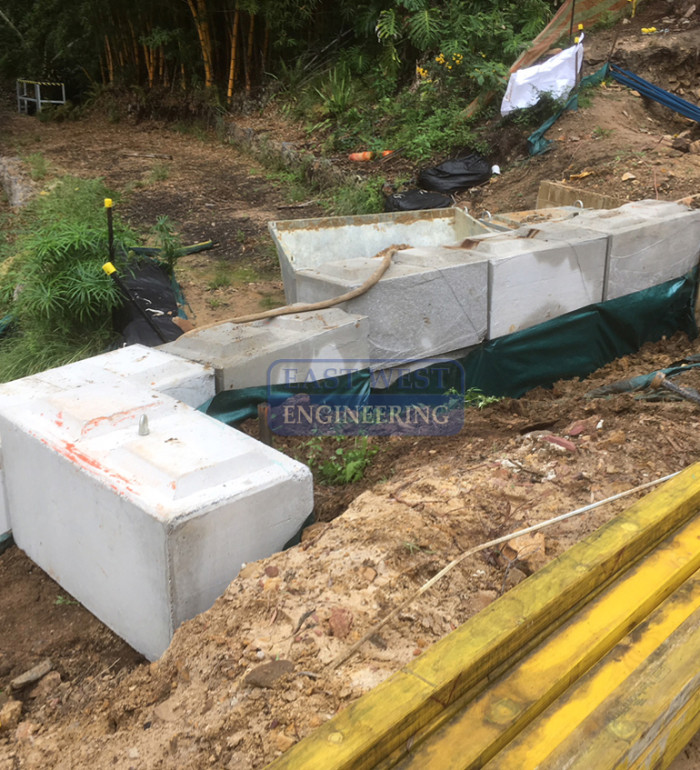

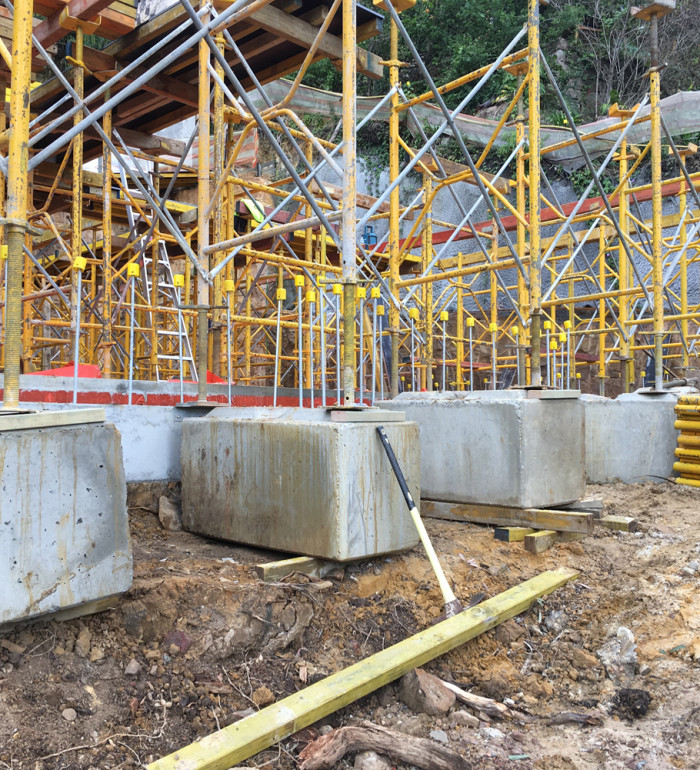

  • Concrete blocks can be used as temporary foundation blocks, retaining walls, security blocks and anchor blocks for boat moorings

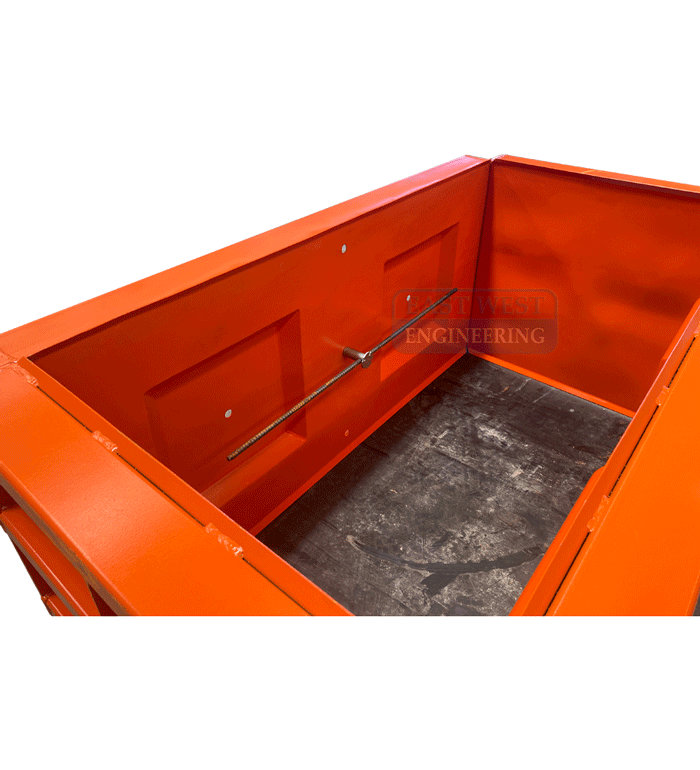

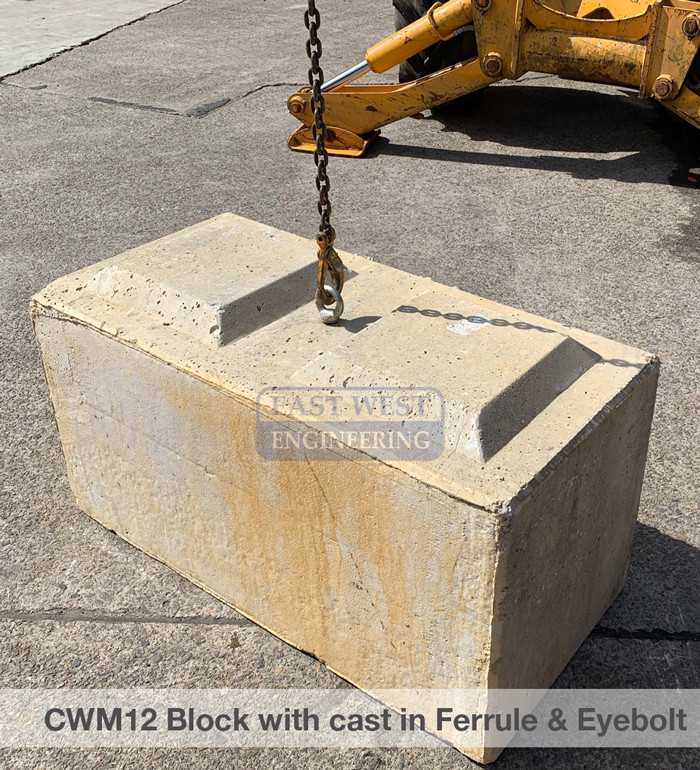

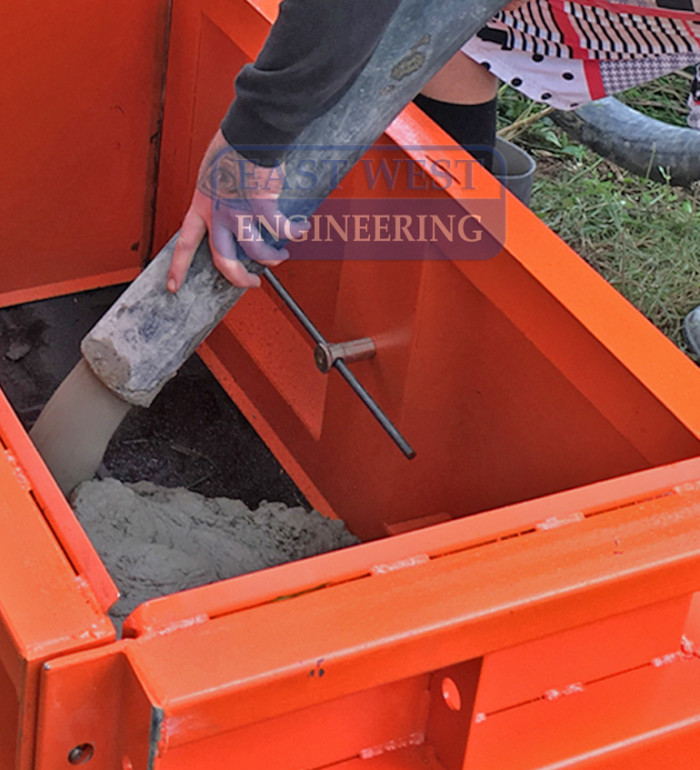

  • Provision for cast in ferrule (suits 12mm reinforcing bar)
  • Supplied with a single M20 eyebolt and ferrule
  • Also available in model with (CWM12) 1.2 x 0.6 x 0.6m finished block size

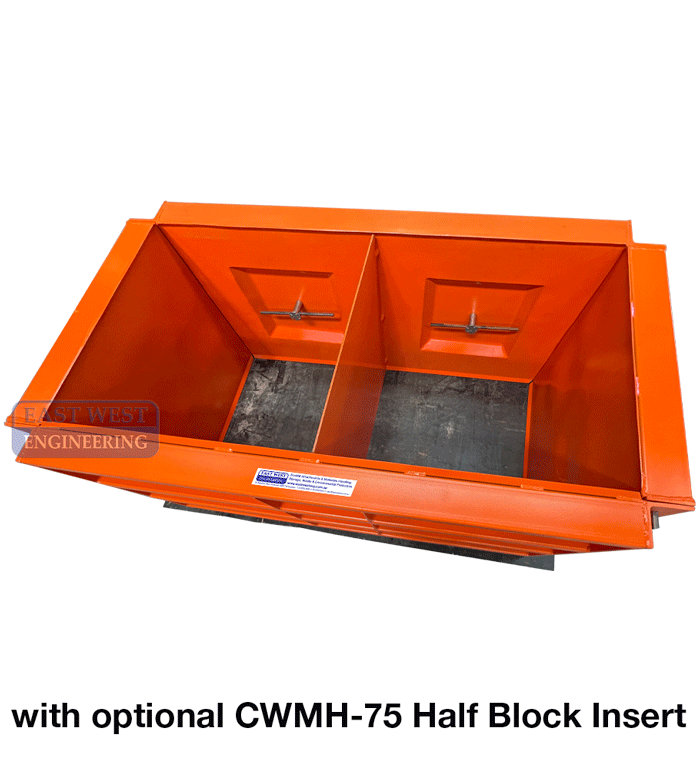

  • Half mould insert (CWMH-75) available for smaller blocks to be used in retaining wall applications
  • Enamel paint finish

SPECIFICATIONS

Capacity 0.844cu.m
Overall Dimensions 1700 x 950 x 750mm
Finished Block Dimensions 1500 x 750 x 750mm
Finished Block Weight 1850kg approx
CWMH-75 Block Dimensions 750 x 750 x 750mm
Unit Weight 270kg
alert
The concrete blocks produced by these moulds are not designed to be a precision fit block. Variations may occur when using multiple moulds or blocks for wall construction. The use of a suitable bonding or grouting material may be required to suit the particular application. Concrete mould should be filled in one complete pour. Ensure reinforcement is used where in accordance with engineers direction.
