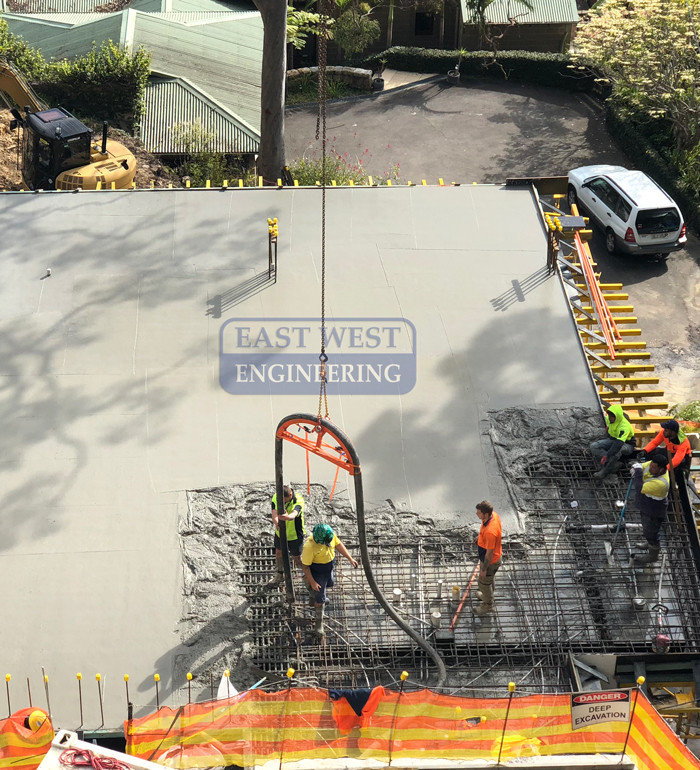

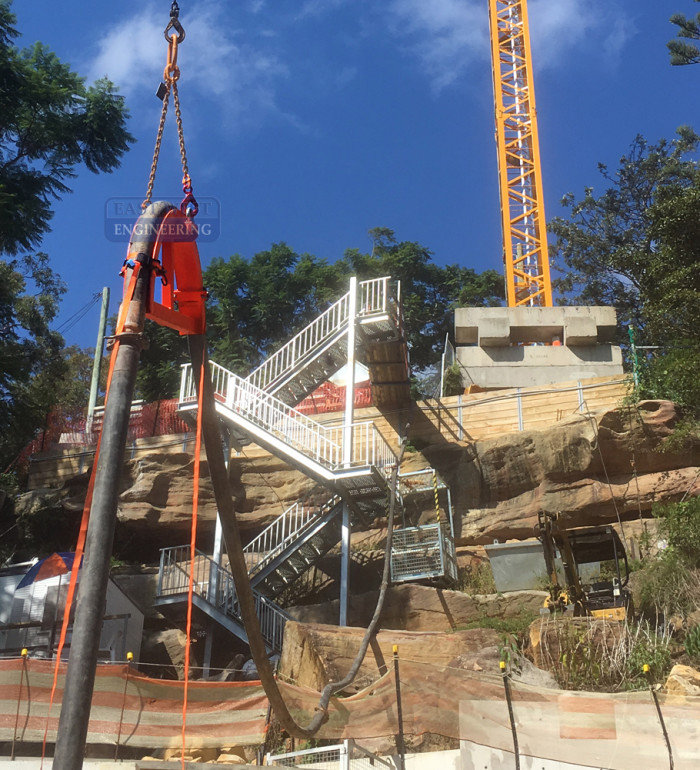

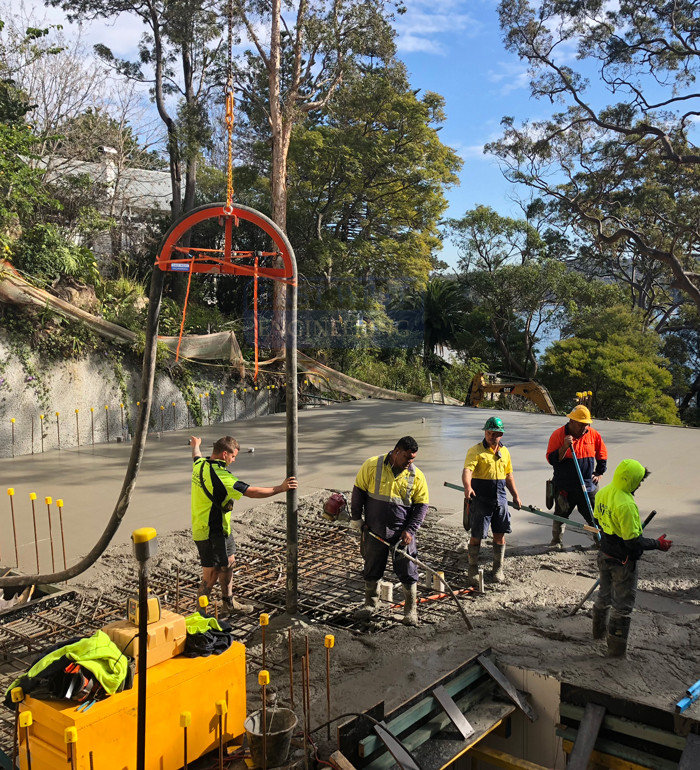

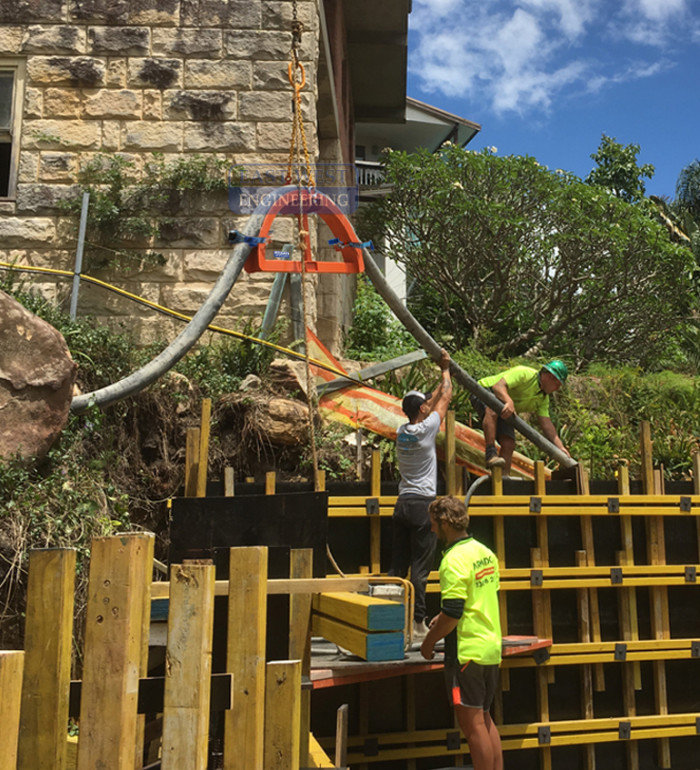

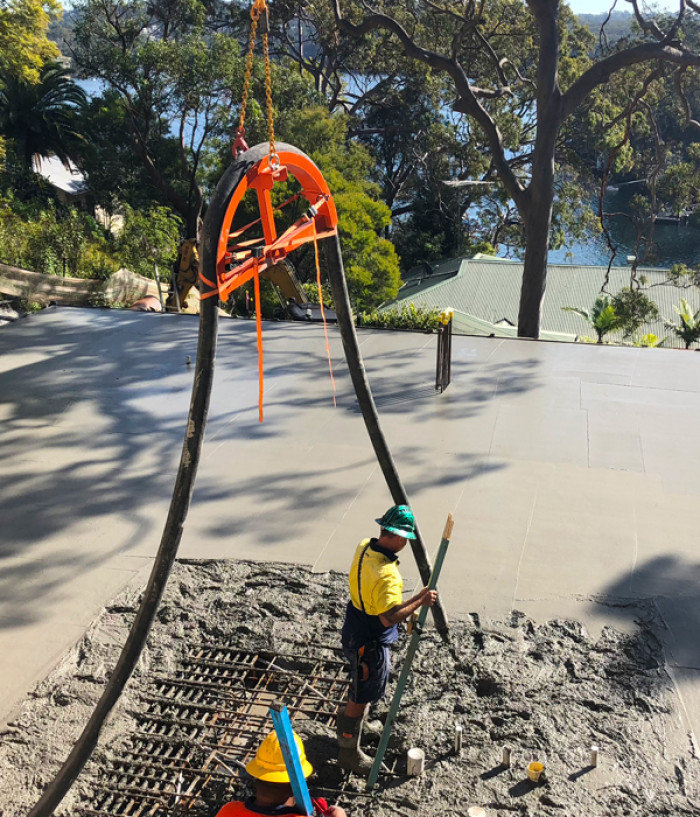

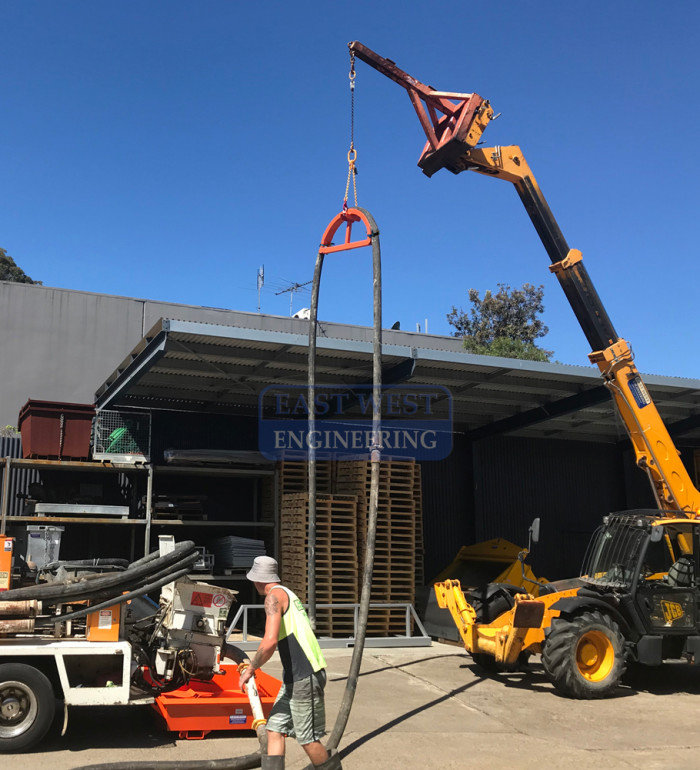

The CML50 Concrete Pumpline Hanger is designed to support the suspended concrete pump hose line off of the ground and guide to the delivery point by overhead crane or telehandler allowing greater site coverage.
FEATURES:
- Ideal solution for moving concrete pump line overhead to delivery point on large construction sites
- Improves efficiency of line pump concrete pours by allowing greater site coverage
- Reduces the requirement and cost for a boom pump if crane or telehandler available
- Curvature of saddle prevents hose damage when hoisted by crane
- Ratchet tensioners supplied for securing hose in position
- Lifting chain set included
- Enamel paint finish
SPECIFICATIONS
| Working Load Limit (WLL) | 500kg |
|---|---|
| Overall Dimensions | 1130 x 275 x 565mm |
| Unit Weight | 37kg |
