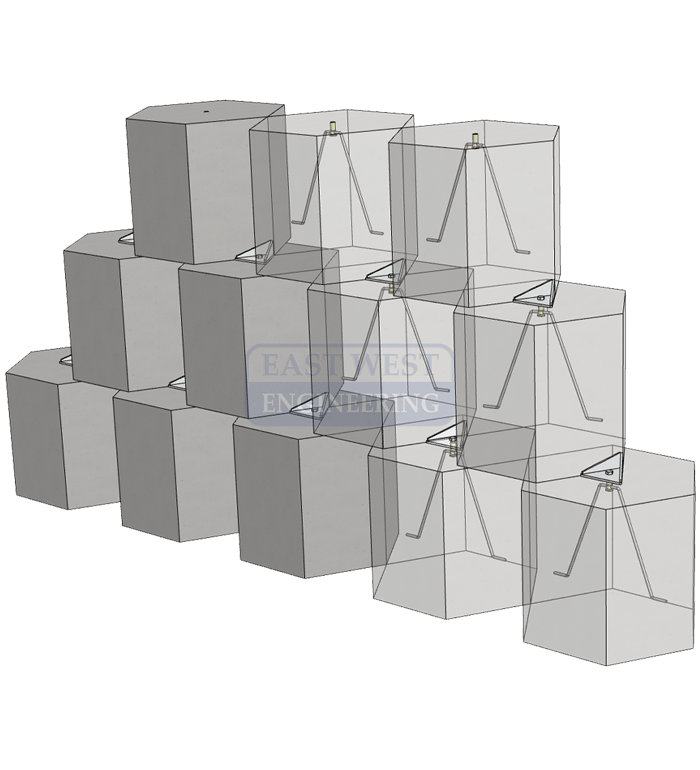

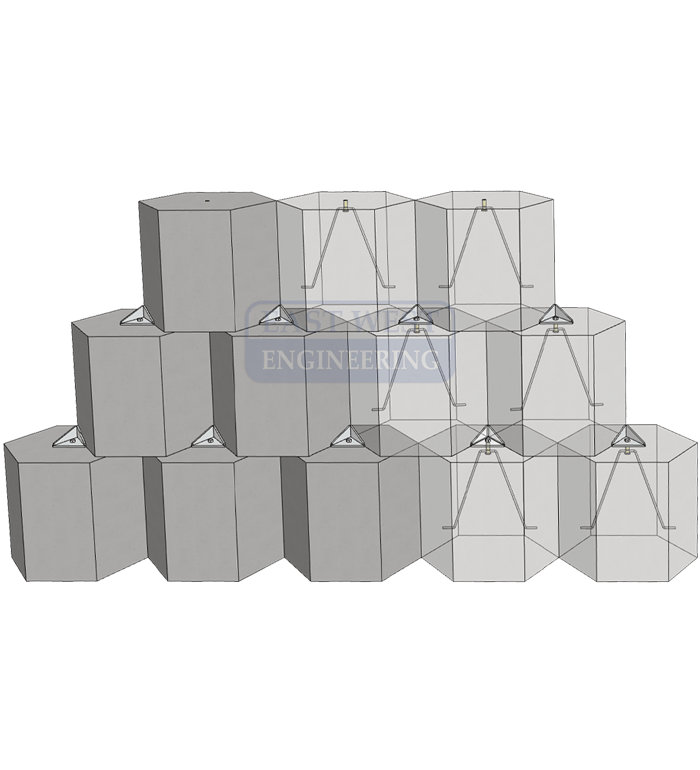

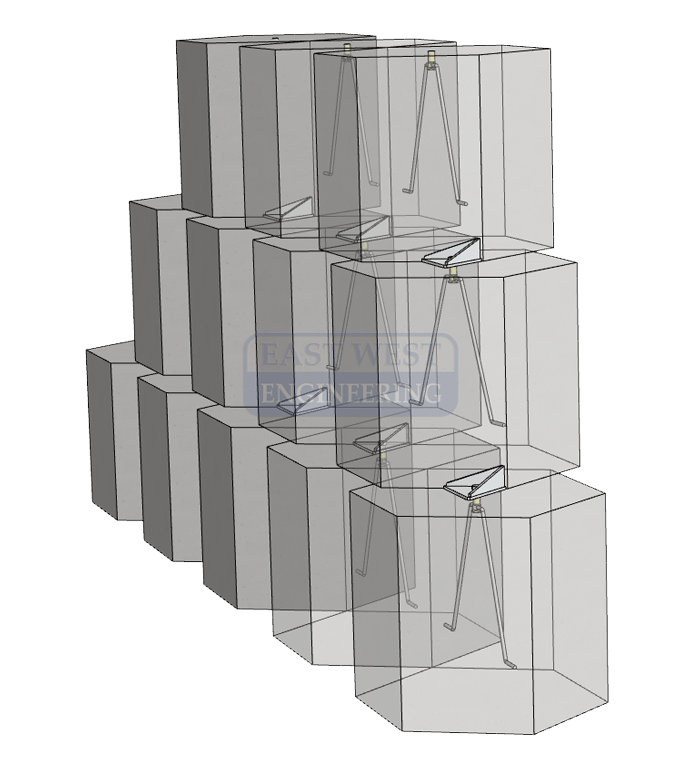

The CMHX90-SK Stacking Bracket provides controlled spacing of the concrete blocks casted by CMHX90 Concrete Mould. Stacked concrete blocks will form a 9 inclined wall with 120mm set-back of each of the layers from its bottom one. The concrete blocks need to be fitted with a CMHX90-FK Ferrule Kit which provide a thread for mounting the spacing kit. The kit includes the stacking bracket and an M20 bolt which is fastened against the thread of the CMHX90-FK Ferrule Kit.
FEATURES:
- For use with CMHX90 Concrete Mould
- Allows stacking of concrete blocks into an inclined wall with 120mm set-back
- M20 bolt supplied
SPECIFICATIONS
| Dimensions | 199(l) x 230(w) x 85(h) mm |
|---|---|
| Unit Weight | 3kg |
